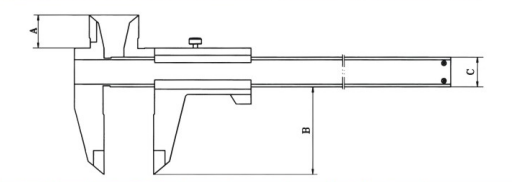

| 货号（不锈钢）Item No.(Stainless Steel) | 货号（碳钢）Item No.(Carbon Steel) | 测量范围Range(mm) | 分度值Grad.(mm) | A(mm) | B(mm) | C(mm) | 精度Accuracy(mm) |
| KVC-510S | KVC-510C | 0-100 | 0.05 | 12.5 | 30 | 13 | ±0.05 |
| KVC-520S | KVC-520C | 0-150 | 0.05 | 17.5 | 40 | 14.5 | |
| KVC-525S | KVC-525C | 0-200 | 0.05 | 18.8 | 50 | 17 | |
| KVC-530S | KVC-530C | 0-250 | 0.05 | 22.8 | 50 | 17 | ±0.06 |
| KVC-535S | KVC-535C | 0-300 | 0.05 | 22.8 | 65 | 17 | |
| KVC-550S | KVC-550C | 0-500 | 0.05 | 38.5 | 100 | 25 | ±0.07 |
| KVC-555S | KVC-555C | 0-600 | 0.05 | 38.5 | 100 | 25 | ±0.08 |
| KVC-110S | KVC-110C | 0-100 | 0.02 | 12.5 | 30 | 13 | ±0.02 |
| KVC-120S | KVC-120C | 0-150 | 0.02 | 17.5 | 40 | 14.5 | ±0.03 |
| KVC-125S | KVC-125C | 0-200 | 0.02 | 18.8 | 50 | 17 | |
| KVC-130S | KVC-130C | 0-250 | 0.02 | 22.8 | 50 | 17 | ±0.04 |
| KVC-135S | KVC-135C | 0-300 | 0.02 | 22.8 | 65 | 17 | |
| KVC-150S | KVC-150C | 0-500 | 0.02 | 38.5 | 100 | 25 | ±0.05 |
| KVC-155S | KVC-155C | 0-600 | 0.02 | 38.5 | 100 | 25 | |
| KVC-610S | KVC-610C | 0-100 | 0.05/1/128" | 12.5 | 30 | 13 | ±0.05 |
| KVC-620S | KVC-620C | 0-150 | 0.05/1/128" | 17.5 | 40 | 14.5 | |
| KVC-625S | KVC-625C | 0-200 | 0.05/1/128" | 18.8 | 50 | 17 | |
| KVC-630S | KVC-630C | 0-250 | 0.05/1/128" | 22.8 | 50 | 17 | ±0.06 |
| KVC-635S | KVC-635C | 0-300 | 0.05/1/128" | 22.8 | 65 | 17 | |
| KVC-650S | KVC-650C | 0-500 | 0.05/1/128" | 38.5 | 100 | 25 | ±0.07 |
| KVC-655S | KVC-655C | 0-600 | 0.05/1/128" | 38.5 | 100 | 25 | ±0.08 |
| KVC-210S | KVC-210C | 0-100 | 0.02/0.001" | 12.5 | 30 | 13 | ±0.02 |
| KVC-220S | KVC-220C | 0-150 | 0.02/0.001" | 17.5 | 40 | 14.5 | ±0.03 |
| KVC-225S | KVC-225C | 0-200 | 0.02/0.001" | 18.8 | 50 | 17 | |
| KVC-230S | KVC-230C | 0-250 | 0.02/0.001" | 22.8 | 50 | 17 | ±0.04 |
| KVC-235S | KVC-235C | 0-300 | 0.02/0.001" | 22.8 | 65 | 17 | |
| KVC-250S | KVC-250C | 0-500 | 0.02/0.001" | 38.5 | 100 | 25 | ±0.05 |
| KVC-255S | KVC-255C | 0-600 | 0.02/0.001" | 38.5 | 100 | 25 |
| |
| 货号（不锈钢）Item No.(Stainless Steel) | 货号（碳钢）Item No.(Carbon Steel) | 测量范围Range(mm) | 分度值Grad.(mm) | A(mm) | B(mm) | C(mm) | 精度Accuracy(mm) |
| KVC-510S | KVC-510C | 0-100 | 0.05 | 12.5 | 30 | 13 | ±0.05 |
| KVC-520S | KVC-520C | 0-150 | 0.05 | 17.5 | 40 | 14.5 | |
| KVC-525S | KVC-525C | 0-200 | 0.05 | 18.8 | 50 | 17 | |
| KVC-530S | KVC-530C | 0-250 | 0.05 | 22.8 | 50 | 17 | ±0.06 |
| KVC-535S | KVC-535C | 0-300 | 0.05 | 22.8 | 65 | 17 | |
| KVC-550S | KVC-550C | 0-500 | 0.05 | 38.5 | 100 | 25 | ±0.07 |
| KVC-555S | KVC-555C | 0-600 | 0.05 | 38.5 | 100 | 25 | ±0.08 |
| KVC-110S | KVC-110C | 0-100 | 0.02 | 12.5 | 30 | 13 | ±0.02 |
| KVC-120S | KVC-120C | 0-150 | 0.02 | 17.5 | 40 | 14.5 | ±0.03 |
| KVC-125S | KVC-125C | 0-200 | 0.02 | 18.8 | 50 | 17 | |
| KVC-130S | KVC-130C | 0-250 | 0.02 | 22.8 | 50 | 17 | ±0.04 |
| KVC-135S | KVC-135C | 0-300 | 0.02 | 22.8 | 65 | 17 | |
| KVC-150S | KVC-150C | 0-500 | 0.02 | 38.5 | 100 | 25 | ±0.05 |
| KVC-155S | KVC-155C | 0-600 | 0.02 | 38.5 | 100 | 25 | |
| KVC-610S | KVC-610C | 0-100 | 0.05/1/128" | 12.5 | 30 | 13 | ±0.05 |
| KVC-620S | KVC-620C | 0-150 | 0.05/1/128" | 17.5 | 40 | 14.5 | |
| KVC-625S | KVC-625C | 0-200 | 0.05/1/128" | 18.8 | 50 | 17 | |
| KVC-630S | KVC-630C | 0-250 | 0.05/1/128" | 22.8 | 50 | 17 | ±0.06 |
| KVC-635S | KVC-635C | 0-300 | 0.05/1/128" | 22.8 | 65 | 17 | |
| KVC-650S | KVC-650C | 0-500 | 0.05/1/128" | 38.5 | 100 | 25 | ±0.07 |
| KVC-655S | KVC-655C | 0-600 | 0.05/1/128" | 38.5 | 100 | 25 | ±0.08 |
| KVC-210S | KVC-210C | 0-100 | 0.02/0.001" | 12.5 | 30 | 13 | ±0.02 |
| KVC-220S | KVC-220C | 0-150 | 0.02/0.001" | 17.5 | 40 | 14.5 | ±0.03 |
| KVC-225S | KVC-225C | 0-200 | 0.02/0.001" | 18.8 | 50 | 17 | |
| KVC-230S | KVC-230C | 0-250 | 0.02/0.001" | 22.8 | 50 | 17 | ±0.04 |
| KVC-235S | KVC-235C | 0-300 | 0.02/0.001" | 22.8 | 65 | 17 | |
| KVC-250S | KVC-250C | 0-500 | 0.02/0.001" | 38.5 | 100 | 25 | ±0.05 |
| KVC-255S | KVC-255C | 0-600 | 0.02/0.001" | 38.5 | 100 | 25 |
