Type IV Vernier Calipers with Fine Adjustment

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Availability:
Quantity:
Inquire Add to Basket

Type IV Vernier calipers with fine adjustment05

·With fine adjustment

·Made of stainless steel

·Satin chrome plated reading surface


Graduation 0.05mm/1/128" (mm)

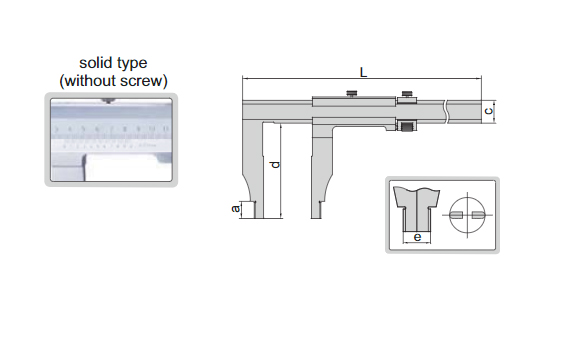

Code Range Accuracy a b d d e L
KVCIV-214 0-200mm/0-8" ±0.06mm 10 20 100 100 10 330
KVCIV-394 0-300mm/0-12" ±0.07mm 10 20 90 90 10 410
KVCIV-324 0-300mm/0-12" ±0.07mm 18 24 150 150 20 410
KVCIV-524 0-500mm/0-20" ±0.08mm 18 24 150 150 20 670
KVCIV-614 0-600mm/0-24" ±0.08mm 18 24 100 100 20 770
KVCIV-624 0-600mm/0-24" ±0.09mm 18 24 150 150 20 770
KVCIV-824 0-800mm/0-32" ±0.09mm 24 31 150 150 20 1030
KVCIV-1024 0-1000mm/0-40" ±0.12mm 24 31 150 150 20 1230
KVCIV-1524 0-1500mm/0-60" ±0.16mm 24 42 150 150 20 1820
KVCIV-2024 0-2000mm/0-80" ±0.20mm 24 42 150 150 20 2330


Graduation 0.02mm (mm)

Code Range Accuracy a b d d e L
KVCIV-511 0-500mm ±0.05mm 18 24 100 100 20 670
KVCIV-521 0-500mm ±0.06mm 18 24 150 150 20 670
KVCIV-1021 0-1000mm ±0.08mm 24 31 150 150 20 1230
KVCIV-1521 0-1500mm ±0.11mm 24 42 150 150 20 1820
