·Resolution 0.001mm/0.00005"
·Button function: on/off,set,mm/inch,ABS/INC
·Data output
·LR44 battery,automatic power off
·Carbide measuring faces
·Friction thimble
·Supplied with spherical anvil
·Setting standards are included (except 0-25mm/0-1")
·Optional accessory: data output cable

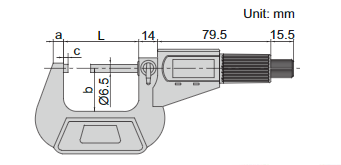

（mm）
| Code | Rang | Accuracy | L | a | b | c |
| KEDM-25* | 0-25mm/0-1" | ±2μm | 32 | 6 | 24 | 3 |
| KEDM-50* | 25-50mm/1-2" | ±2μm | 57 | 8 | 32 | 3 |
| KEDM-75* | 50-75mm/2-3" | ±3μm | 82 | 8 | 45 | 3 |
| KEDM-100* | 75-100mm/3-4" | ±3μm | 107 | 10 | 57 | 3 |
| KEDM-125 | 100-125mm/4-5" | ±3μm | 133 | 10 | 70 | 3 |
| KEDM-150 | 125-150mm/5-6" | ±3μm | 158 | 10 | 82 | 3 |
| KEDM-175 | 150-175mm/6-7" | ±4μm | 183 | 12 | 95 | 5.5 |
| KEDM-200 | 175-200mm/7-8" | ±4μm | 209 | 12 | 107 | 5.5 |

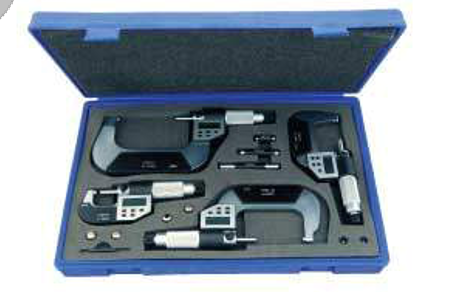

Set
| Code | Rang | Micrometers included | Packaging |
| KEDM-753A* | 0-75mm/0-3" | KEDM-25,KEDM-50,KEDM-75 | blow mould case |
| KEDM-1004A* | 0-100mm/0-4" | KEDM-25,KEDM-50,KEDM-75,KBD-100 | blow mould case |
| KEDM-1506A | 0-150mm/0-6" | KEDM-25,KEDM-50,KEDM-75,KBD-100,KBD-125,KBD-150 | aluminum box |
·Resolution 0.001mm/0.00005"
·Button function: on/off,set,mm/inch,ABS/INC
·Data output
·LR44 battery,automatic power off
·Carbide measuring faces
·Friction thimble
·Supplied with spherical anvil
·Setting standards are included (except 0-25mm/0-1")
·Optional accessory: data output cable
（mm）
| Code | Rang | Accuracy | L | a | b | c |
| KEDM-25* | 0-25mm/0-1" | ±2μm | 32 | 6 | 24 | 3 |
| KEDM-50* | 25-50mm/1-2" | ±2μm | 57 | 8 | 32 | 3 |
| KEDM-75* | 50-75mm/2-3" | ±3μm | 82 | 8 | 45 | 3 |
| KEDM-100* | 75-100mm/3-4" | ±3μm | 107 | 10 | 57 | 3 |
| KEDM-125 | 100-125mm/4-5" | ±3μm | 133 | 10 | 70 | 3 |
| KEDM-150 | 125-150mm/5-6" | ±3μm | 158 | 10 | 82 | 3 |
| KEDM-175 | 150-175mm/6-7" | ±4μm | 183 | 12 | 95 | 5.5 |
| KEDM-200 | 175-200mm/7-8" | ±4μm | 209 | 12 | 107 | 5.5 |
Set
| Code | Rang | Micrometers included | Packaging |
| KEDM-753A* | 0-75mm/0-3" | KEDM-25,KEDM-50,KEDM-75 | blow mould case |
| KEDM-1004A* | 0-100mm/0-4" | KEDM-25,KEDM-50,KEDM-75,KBD-100 | blow mould case |
| KEDM-1506A | 0-150mm/0-6" | KEDM-25,KEDM-50,KEDM-75,KBD-100,KBD-125,KBD-150 | aluminum box |
