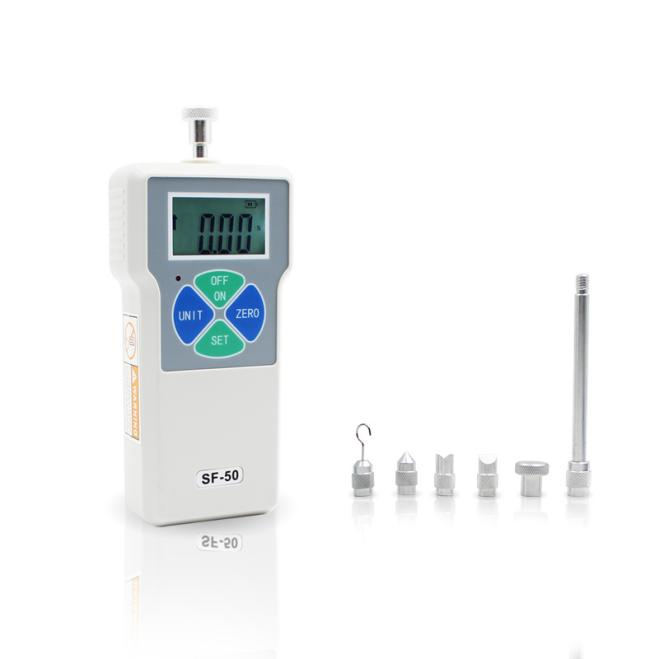

Digital Force Gauge - Sf Model

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Put the SF force gauge on the calibration stand ,and mount the standand hook.

1. Turn on ,when it shows”100N”, press “SET” key for 5 seconds,and then the display show “SF” ,it means you have enter into calibration interface .

2. Choose measuring range:

Press “SET” key ,it shows “100N”,and then press “SET” again .

The force gauge will return to SF display automatically.

3. Zero calibration

Press “UNIT” key , display “ZERO” , and then press “SET” key ,display 0000.

Press “SET” again ,it will back to “ ZERO” automatically .

   4. Full range calibration

    Press “UNIT” key , the screen will display “FULL”, and then press “SET” key  to  show 0000.

To put 100N dead weight force on it . (If you need 500n, please put force to 500N)

And when the screen display stable ,press “SET” key again ,it will back to “ FULL” display .

5. Check the force

OFF and then ON again , enter into measuring interface.

Press “ZERO” key to clear , wait 2 seconds ,and then put the dead weight to check the  force correct or not .
