Factory code | Photo | Description | Technical parameters | Package Details | N.W./G.W.KGS |

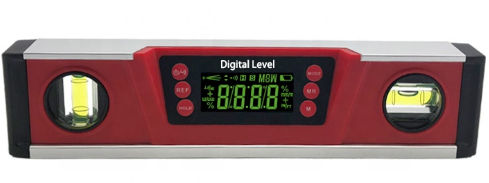

DL135 | 25.4cm/10inch Digital Level, with 2 Bubbles With 4 Magnets | 1. Item size: 254x28x58.8mm 2. Net weight: 373g 3. Body material: Aluminium + ABS 4. Unit package: Color box+ 600D carry bag + Instruction Manual 5. Screen Display: LED "Trafic Light" display 6. Horizontal level measuring range: 0 to 360° (4x90°) 7. Resolution: 0.05° 8. Accuracy: ±0.1° at 0° and 90°; ±0.2° at the rest 9. Measures Mode: Degrees, percent, mm/m, IN/FT 10. Inverted reading position for overhead work. 11. 4 Magnets Location: Measuring base 12. Battery Compartment opening method: 4 Screws 13. Dust & Water Resistance Standards: IP54 14. Other Features: - Auto Power Off, Set Zero, Low battery indicated, - HOLD Function, Set Angle Alert, V-Groove 15. Operated power: DC 3V/2*AAA LR03 1.5V Batteries(Not included) | Unit paper box size/Qty: 28x7.5x4.5cm/1pc Outer carton size/Qty: 30X23X41CM/25PCS (0.028cbm/25pcs) | N.W.: 12KGS G.W.: 13KGS |
<
Factory code | Photo | Description | Technical parameters | Package Details | N.W./G.W.KGS |
DL135 | 25.4cm/10inch Digital Level, with 2 Bubbles With 4 Magnets | 1. Item size: 254x28x58.8mm 2. Net weight: 373g 3. Body material: Aluminium + ABS 4. Unit package: Color box+ 600D carry bag + Instruction Manual 5. Screen Display: LED "Trafic Light" display 6. Horizontal level measuring range: 0 to 360° (4x90°) 7. Resolution: 0.05° 8. Accuracy: ±0.1° at 0° and 90°; ±0.2° at the rest 9. Measures Mode: Degrees, percent, mm/m, IN/FT 10. Inverted reading position for overhead work. 11. 4 Magnets Location: Measuring base 12. Battery Compartment opening method: 4 Screws 13. Dust & Water Resistance Standards: IP54 14. Other Features: - Auto Power Off, Set Zero, Low battery indicated, - HOLD Function, Set Angle Alert, V-Groove 15. Operated power: DC 3V/2*AAA LR03 1.5V Batteries(Not included) | Unit paper box size/Qty: 28x7.5x4.5cm/1pc Outer carton size/Qty: 30X23X41CM/25PCS (0.028cbm/25pcs) | N.W.: 12KGS G.W.: 13KGS |
